Introduction
Fuel dispensers operate continuously in gas stations, and the filter system plays an important role in maintaining fuel quality and stable dispensing performance.
A clogged or damaged fuel dispenser filter may cause:
Regular fuel dispenser filter cleaning and replacement can help maintain reliable operation, extend equipment service life, and reduce unexpected downtime.
This guide explains:
- Why fuel dispenser filters need maintenance
- How to clean a fuel dispenser filter
- When to replace the filter
- Common filter-related problems
- Safety precautions during maintenance
For gas station owners, contractors, and equipment operators, proper dispenser maintenance is essential for safe and efficient station operation.
1.What Is a Fuel Dispenser Filter and Why Is It Important?
A fuel dispenser filter is a filtration device installed in the fuel delivery system. Its main purpose is to remove impurities and particles from the fuel.
During the refueling process, fuel passes through the filter before entering other important components, such as:
- Gear pump
- Flow meter
- solenoid valve
- Fuel nozzle
By filtering out contaminants, the filter helps reduce wear on precision components, extend equipment service life, and maintain stable fuel measurement accuracy.
2.Why Is Regular Filter Cleaning Necessary?
As the fuel dispenser continues operating, impurities gradually accumulate inside the filter element.
When the filter becomes clogged, several problems may occur:
- Reduced Refueling Speed
Increased filtration resistance reduces fuel flow, resulting in longer refueling time.
- Increased Gear Pump Load
Poor fuel supply forces the pump to work harder, increasing operating pressure and mechanical stress.
- Unstable Flow Rate
Insufficient fuel supply may cause flow fluctuations and affect measurement accuracy.
- Higher Risk of Equipment Failure
Severe blockage may affect the performance of other critical components.
Therefore, keeping the filter clean is essential for maintaining long-term stable operation of the fuel dispenser.
3.How to Clean a Fuel Dispenser Filter Step by Step
Step 1: Shut Down the Equipment and Prepare for Maintenance
Before cleaning the filter, make sure to:
- Turn off the fuel dispenser power supply
- Close the fuel shut-off valve
- Prepare a container for collecting fuel

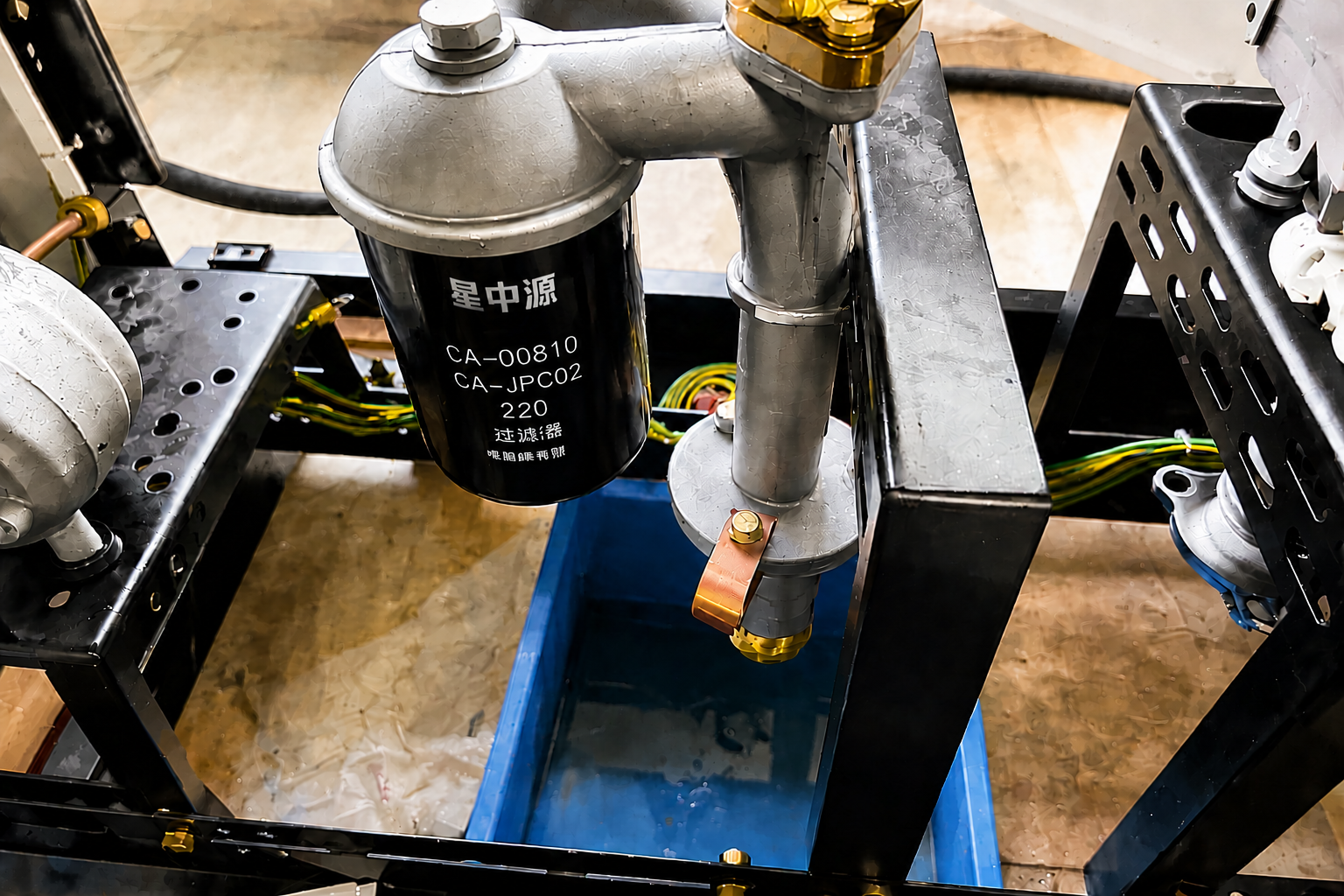

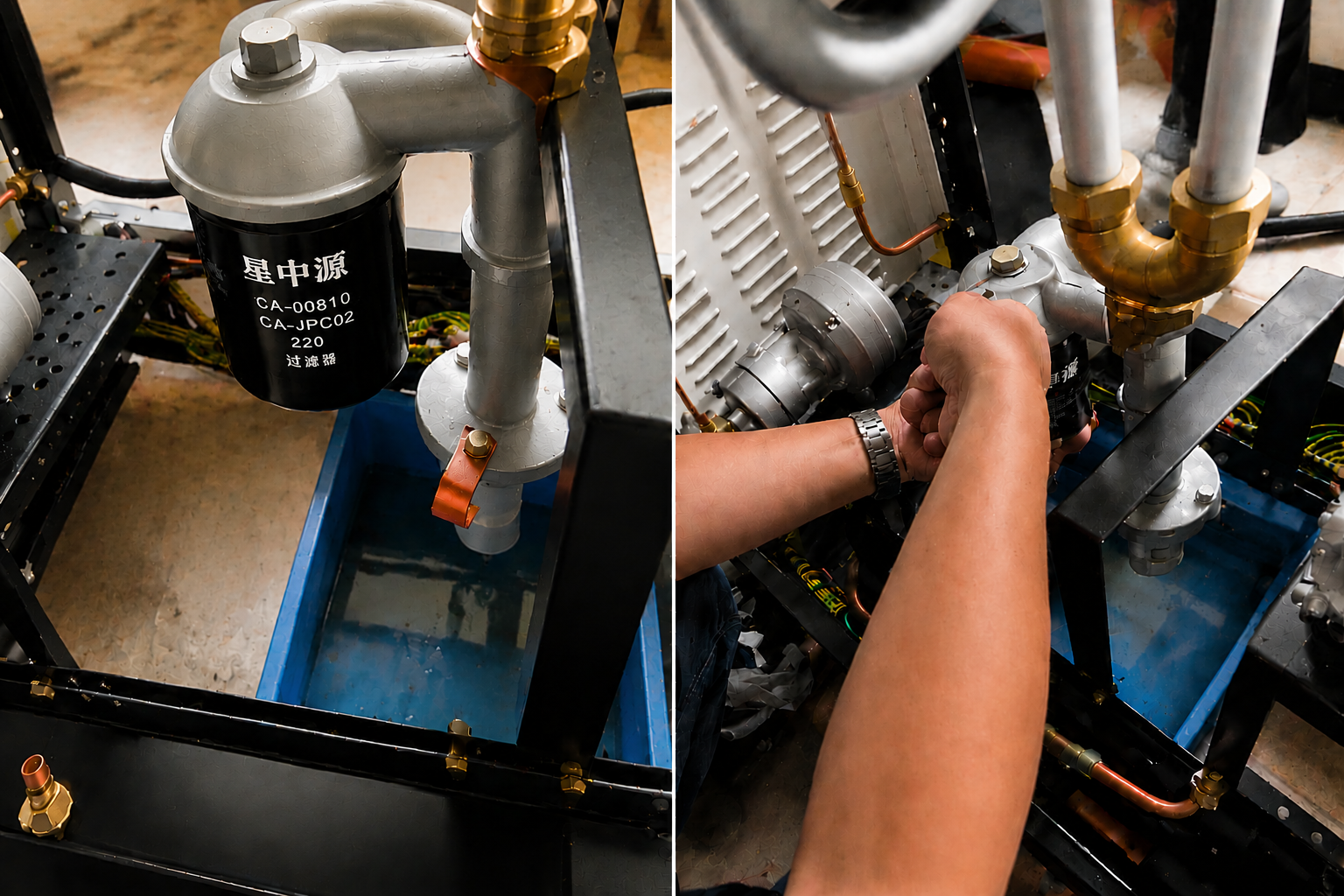

Step 2: Remove the Filter Assembly
First, hold the bottom part of the filter securely.
Then use a tool to loosen the fixing screw on the top of the filter.
Slowly rotate the filter assembly until it is completely opened.
During removal, pay attention to:
- Avoid hitting or damaging the filter housing
- Prevent remaining fuel from leaking
- Protect sealing components from damage

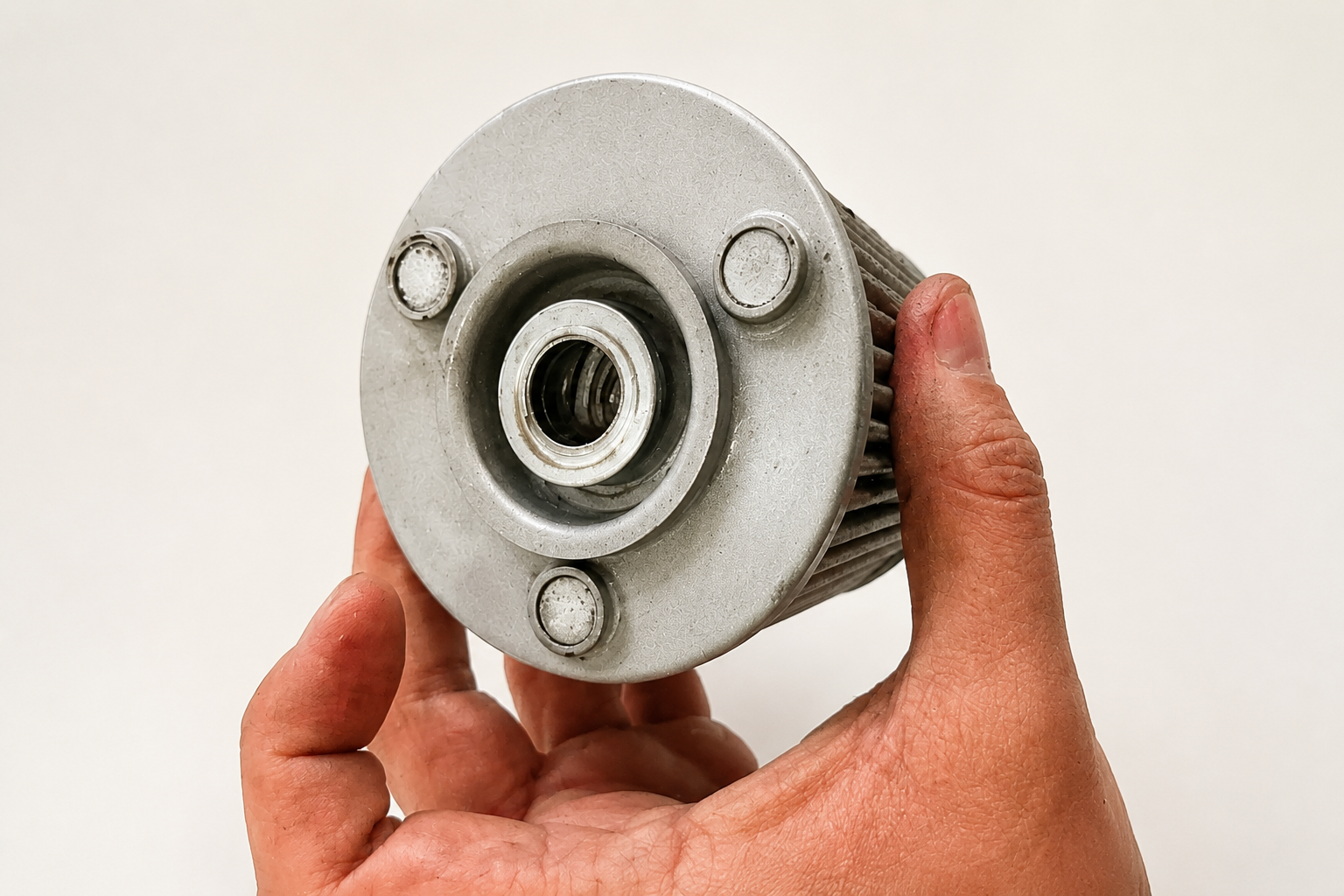

Step 3: Clean the Filter Screen or Replace the Filter Element
After opening the filter, check the condition of the internal filter screen.
If the filter screen is only slightly contaminated:
It can be cleaned with clean fuel or a professional cleaning solution.
If the filter has:
- A damaged filter screen
- Severe blockage
- Reduced filtration performance
It is recommended to replace the filter element directly.
At the same time, check:
- Whether the sealing ring is complete
- Whether there are impurities inside the filter housing
- Whether the filter body is damaged
This ensures that no fuel leakage occurs after reinstallation.
Step 4: Reinstall the Filter and Perform Testing
After cleaning or replacement, check the following:
- Install the filter element correctly
- Confirm the sealing ring is positioned properly
- Install the filter housing
- Tighten all fixing screws
Then restart the equipment:
- Open the fuel shut-off valve
- Start the fuel dispenser
- Check whether fuel delivery is normal
Also confirm:
- No fuel leakage occurs
- Refueling speed is normal
- Equipment operates smoothly
4. When Should a Fuel Dispenser Filter Be Replaced?
Cleaning is not always enough.
A filter should be replaced when:
The Filter Mesh Is Damaged
A damaged filter cannot effectively remove impurities.
Fuel Flow Remains Low After Cleaning
If dispensing speed remains abnormal after cleaning, the filter may need replacement.
The Filter Has Been Used for a Long Time
Replacement frequency depends on:
- Fuel quality
- Station traffic volume
- Operating environment
- Maintenance conditions
Regular inspection helps determine the correct replacement cycle.
5. Common Fuel Dispenser Filter Problems and Solutions
| Problem | Possible Cause | Solution |
|---|
| Low fuel flow rate | Filter blockage | Clean or replace filter |
| Slow refueling speed | Restricted fuel supply | Inspect filter condition |
| Pump abnormal noise | High fuel resistance | Check filter and pump system |
| Unstable fuel delivery | Poor filtration performance | Replace damaged filter |
| Frequent dispenser problems | Fuel contamination | Check filtration system |
6. Fuel Dispenser Filter Maintenance Recommendations
To maintain reliable dispenser operation, gas station operators should establish regular inspection procedures.
Recommended maintenance includes:
Regular Filter Inspection
Check:
- Filter condition
- Fuel flow performance
- Leakage condition
- Connection points
Keep Fuel Storage System Clean
Fuel contamination often comes from upstream systems.
Proper management of:
- Underground tanks
- Fuel pipelines
- Fuel transfer process
helps reduce filter blockage.
Related article:
→ Underground Fuel Tank System Guide
Prepare Spare Filters
Keeping suitable replacement filters available helps reduce downtime during maintenance.
Professional suppliers can provide:
- Fuel dispenser filters
- Fuel dispenser spare parts
- Complete dispenser components
7. Complete Fuel Dispenser Solutions for Gas Stations
A reliable fuel station requires not only high-quality dispensers but also professional technical support and spare parts supply.
Xingzhongyuan provides complete fuel station equipment solutions, including:
- Fuel dispensers
- Fuel dispenser spare parts
- Submersible pumps
- Underground tank equipment
- Tank monitoring systems
- Technical support
With professional equipment supply and project experience, we help global customers build safer and more efficient fuel stations.
Conclusion
Although the fuel dispenser filter is a relatively small component, it plays an important role in maintaining the stability of the entire fuel system.
A clean and efficient filter can effectively protect critical components such as the gear pump, flow meter, and solenoid valve, improving equipment reliability and maintaining stable measurement performance.
Through proper cleaning procedures, standardized maintenance practices, and regular inspections, fuel station operators and maintenance technicians can reduce equipment failures, improve operating efficiency, and provide safer and more reliable refueling services.
