Fuel Dispenser Configuration Guide: How to Calculate Nozzles, Fueling Positions and Dispenser Q

News 2026年 9月 4日 80

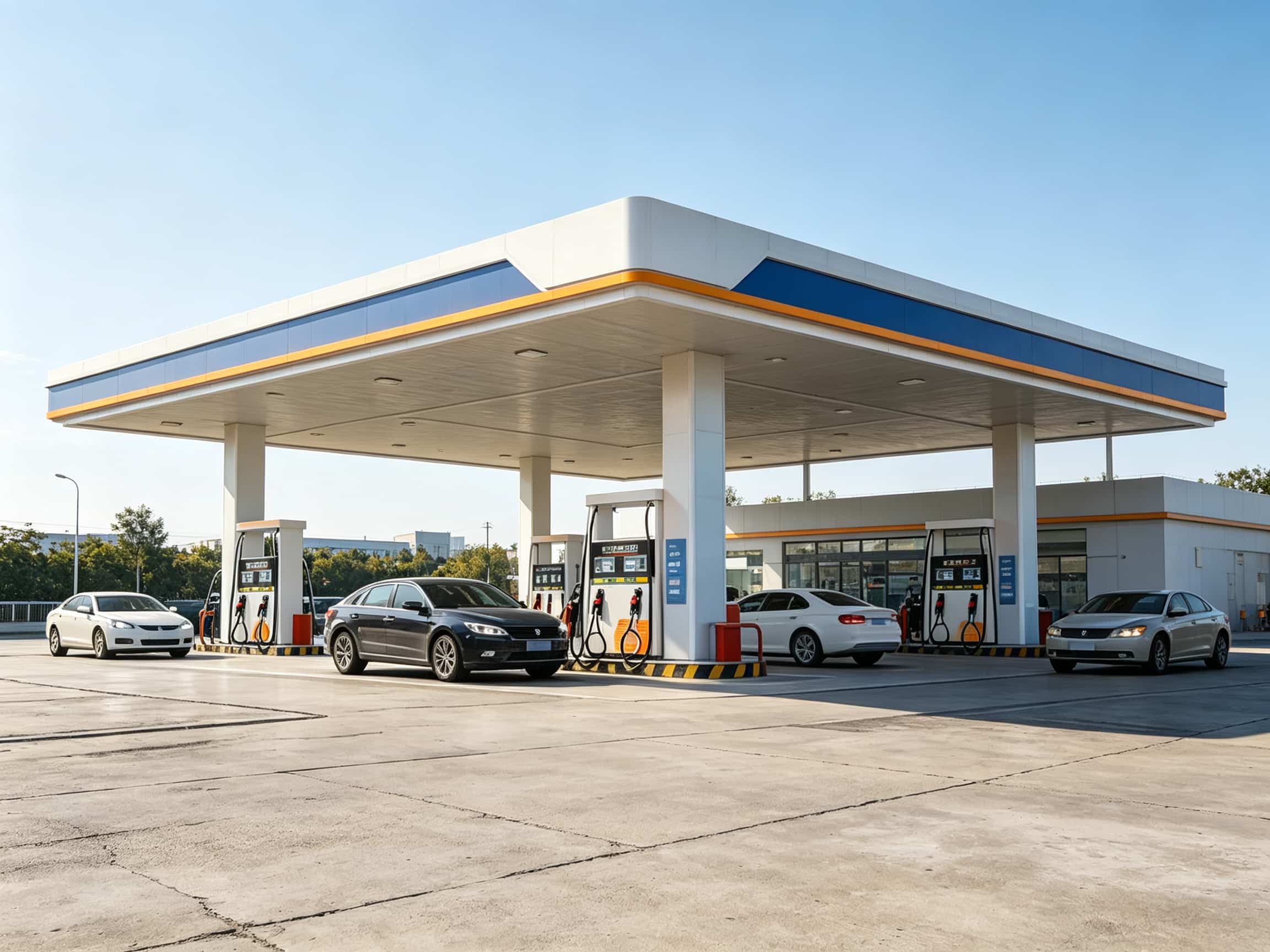

Introduction

Choosing a fuel dispenser should not start with a simple question such as “How many nozzles do I need for my gas station?”

The correct configuration depends on much more than nozzle quantity.

A practical fuel dispenser configuration should consider:

• Road traffic volume
• Expected station capture rate
• Daily fueling vehicles
• Average fuel volume per vehicle
• Daily and annual fuel sales
• Gasoline and diesel fuel mix
• Peak-hour demand
• Required fueling positions
• Number of nozzles and fuel grades
• Dispenser quantity
• Tank capacity
• Pump and underground piping

The basic relationship is:

Traffic → Station Demand → Fuel Sales → Fuel Mix → Peak Demand → Fueling Positions → Nozzles → Dispensers → Pumps → Tanks and Piping

This approach is more reliable than choosing a dispenser only by the number of nozzles.

1. Start With Traffic: How Many Vehicles Will Use the Station?

The first step in gas station fuel demand forecasting is estimating how many vehicles will actually use the station.

For example, suppose a project has:

• Road traffic: 20,000 vehicles/day
• Estimated station capture rate: 4%

Then:

20,000 × 4% = 800 vehicles/day

If approximately 90% of these vehicles actually purchase fuel:

800 × 90% = 720 fueling vehicles/day

The 4% and 90% values above are illustrative project assumptions, not universal industry standards. The actual capture rate should be estimated from the site’s location, competitors, access, visibility, traffic direction and customer profile.

This is the first important point:

Road traffic is not the same as station fueling traffic.

2. Calculate Daily and Annual Fuel Sales

Once the expected fueling vehicles are known, estimate the fuel volume.

Assume:

• Fueling vehicles: 720 vehicles/day
• Average fuel purchase: 35 L/vehicle

Then:

720 × 35 = 25,200 L/day

Estimated annual fuel sales:

25,200 × 365 = 9,198,000 L/year

So the project would have an illustrative annual sales potential of approximately:

9.20 million liters/year

This calculation is important when planning a fuel dispenser configuration for a new gas station, because equipment capacity should be related to expected demand rather than simply station size.

3. Determine the Gasoline and Diesel Fuel Mix

The next question is:

What fuels will the station actually sell?

For example:

This fuel mix directly affects the fuel dispenser nozzle configuration.

A station selling three gasoline grades and diesel may need more product connections and nozzles than a station selling only gasoline and diesel.

Therefore:

Nozzle quantity should follow fuel demand and fuel grades, not simply the physical size of the station.

4. Calculate Peak-Hour Fueling Demand

Daily sales alone are not enough.

A station may sell 25,200 L/day, but the dispenser system must also handle the busiest periods without creating excessive queues.

For example, assume the project estimates that 10% of daily fueling vehicles arrive during the peak hour:

720 × 10% = 72 vehicles/hour

If the average fueling time is 5 minutes:

60 ÷ 5 = 12 vehicles/hour per fueling position

However, designing at 100% theoretical utilization leaves little room for waiting, payment, nozzle handling and vehicle movement.

Using an illustrative 80% practical utilization:

12 × 80% = 9.6 vehicles/hour

Required fueling positions:

72 ÷ 9.6 ≈ 7.5

Therefore, the preliminary design would be approximately:

8 fueling positions

Again, these are project assumptions used to demonstrate the calculation method, not a universal station design standard.

5. Fueling Position ≠ Nozzle ≠ Fuel Dispenser

This distinction is essential when deciding how many fuel dispensers a gas station needs.

Fueling Position

The location where a vehicle stops and receives fuel.

Nozzle

The individual fuel delivery gun used for a specific fuel product.

Fuel Dispenser

The complete dispensing machine installed on the fueling island.

They should not be treated as the same quantity.

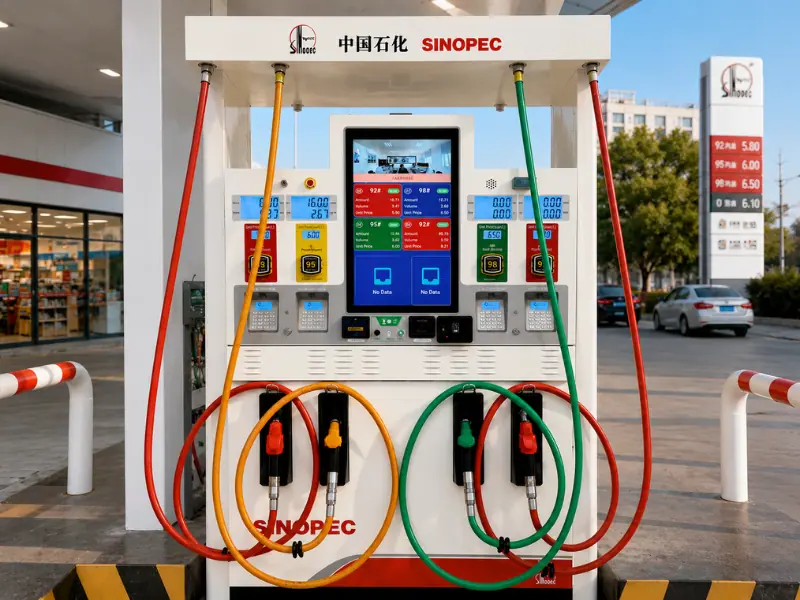

For example, a double-sided dispenser may serve vehicles from both sides. A multi-product dispenser may also provide several fuel grades through multiple nozzles.

Therefore, the final configuration depends on:

Fueling positions + dispenser design + nozzle quantity + fuel grades + site traffic flow

This is why simply saying “8 nozzles means a large gas station” is not an adequate engineering method.

6. How to Choose Fuel Dispenser Nozzles

After estimating demand, determine how many nozzles are needed for each fuel.

The main factors are:

1. Fuel grade
2. Daily sales by fuel
3. Peak-hour demand
4. Number of vehicles served simultaneously
5. Gasoline/diesel ratio
6. Expected future growth
7. Site layout and vehicle flow

Flow rate is another important factor when selecting a nozzle and dispenser. See our guide to [Fuel Dispenser Flow Rate] for a detailed explanation of how L/min affects dispenser selection and station performance.

For example, if diesel represents a large share of sales and the station serves trucks, diesel may require more dedicated fueling capacity than a low-demand gasoline grade.

Similarly, a high-demand gasoline grade may need more dispensing positions than a premium grade with much lower sales.

“How to choose fuel dispenser nozzles?”

Start with fuel demand, not nozzle count.

7. How Many Fuel Dispensers Does the Station Need?

Once the required fueling positions and fuel products are known, the next step is determining the fuel dispenser quantity.

The preliminary design should consider:

• Required fueling positions
• Single-sided or double-sided dispensers
• Number of fuel grades
• Nozzle arrangement
• Vehicle circulation
• Island dimensions
• Expected peak-hour traffic
• Future expansion

After determining the preliminary dispenser quantity, the physical arrangement should be checked against the site layout. See our [Fuel Dispenser Installation and Layout Requirements] for installation and layout considerations.

For the example above, the calculation indicates approximately 8 fueling positions.

A possible preliminary layout could therefore use multiple dispensers arranged to serve these positions efficiently.

The exact number of dispensers cannot be determined from daily sales alone. The final configuration should be checked against the site plan and the manufacturer’s available nozzle/product combinations.

For different nozzle and fuel-product configurations, see our [Fuel Dispenser Product Range] to compare available dispenser models and configurations.

8. Match Fuel Dispenser Configuration With Tank Capacity

Fuel dispenser configuration should also be connected with the underground storage system.

If estimated sales are:

25,200 L/day

and the project requires several days of fuel inventory, the required storage volume can be estimated from:

Required working inventory = Daily fuel demand × Inventory days

For example, using an illustrative 5-day inventory assumption:

25,200 × 5 = 126,000 L

This does not mean the project should automatically install a 126 m³ tank.

The final tank capacity must also consider:

• Maximum filling level
• Safety requirements
• Fuel delivery frequency
• Separate fuel grades
• Tank compartment configuration
• Local regulations
• Available tank sizes
• Expected future demand

Therefore, tank capacity and fuel dispenser configuration should be designed as one system.

9. Match the Dispenser With Pumps and Underground Piping

The configuration should continue one step further.

A high-nozzle-count dispenser does not automatically mean the station needs a larger pump.

The pump must match:

• Number of active nozzles
• Required flow rate
• Simultaneous fueling demand
• Fuel type
• Pipeline length
• Pipe diameter
• Pressure loss
• Tank arrangement

The same principle applies to underground piping.

The complete system should be evaluated as:

Tank → Submersible Pump → Underground Piping → Fuel Dispenser → Nozzle

For detailed pipeline selection and installation considerations, see our guide:

Gas Station Underground Fuel Piping: Pipe Size, Layout and Installation Guide

This prevents the common mistake of selecting the dispenser first and checking the pump and piping later.

Need a Complete Fuel Station Equipment Solution?

Fuel dispensers should be matched with pumps, underground piping, tanks and site requirements. Share your project parameters with us, and we can help you review the complete equipment configuration.

10. A Practical Fuel Dispenser Configuration Workflow

For a new gas station, the recommended sequence is:

Step 1 — Traffic

Estimate road traffic and potential station capture.

Step 2 — Customers

Estimate daily fueling vehicles.

Step 3 — Sales

Calculate daily and annual fuel sales.

Step 4 — Fuel Mix

Determine gasoline grades, diesel and their sales proportions.

Step 5 — Peak Demand

Estimate peak-hour vehicles and fueling time.

Step 6 — Fueling Positions

Calculate the approximate number of simultaneous fueling positions required.

Step 7 — Nozzles

Allocate nozzles according to fuel grades and demand.

Step 8 — Dispensers

Select the number and type of fuel dispensers.

Step 9 — Tanks

Match storage capacity with fuel demand and delivery cycles.

Step 10 — Pumps & Piping

Check flow rate, pump capacity, pipe diameter and pipeline distance.

This creates a much more practical gas station fuel dispenser layout and configuration.

11. What Information Should You Provide for a Custom Configuration?

If you want a supplier to recommend a custom fuel dispenser configuration, prepare:

• Project country and location
• New station or renovation
• Road traffic volume
• Expected daily fueling vehicles
• Estimated daily fuel sales
• Gasoline grades
• Diesel demand
• Number and capacity of underground tanks
• Expected fueling positions
• Site layout
• Tank-to-dispenser distance
• Required flow rate
• Voltage and frequency

With these parameters, the supplier can evaluate the required:

Nozzle configuration + fueling positions + dispenser quantity + pump capacity + tank and piping requirements.

FAQ

How many nozzles do I need for a gas station?

There is no universal nozzle quantity. It should be calculated from fuel types, daily sales, peak-hour demand, fueling positions and site layout.

How do I calculate fuel dispenser quantity?

Start with peak-hour fueling demand and required fueling positions, then match the positions with the selected single-sided or double-sided dispenser configuration.

Should gasoline and diesel use different nozzles?

They normally require separate product connections and dispensing paths. The exact configuration depends on the dispenser design, fuel system and local requirements.

Does a larger tank require more fuel dispensers?

Not necessarily. Tank capacity is related mainly to fuel storage and delivery requirements, while dispenser quantity is driven primarily by fueling demand, peak-hour traffic and site layout.

Can fuel dispenser configuration be customized?

Yes. Fuel dispenser configurations can be designed around fuel grades, nozzle quantity, flow rate, fueling positions, site layout and project requirements.

Conclusion

A professional fuel dispenser configuration should never be selected by nozzle quantity alone.

The correct approach is:

Traffic → Capture Rate → Fueling Vehicles → Daily Sales → Annual Sales → Fuel Mix → Peak Demand → Fueling Positions → Nozzles → Dispensers → Tanks → Pumps → Piping

This approach helps gas station owners, contractors and equipment purchasers avoid over-configuring or under-configuring their equipment.

If you provide your project traffic, expected fuel sales, fuel types, tank capacity and site layout, we can help develop a practical gas station fuel dispenser configuration for your project.
